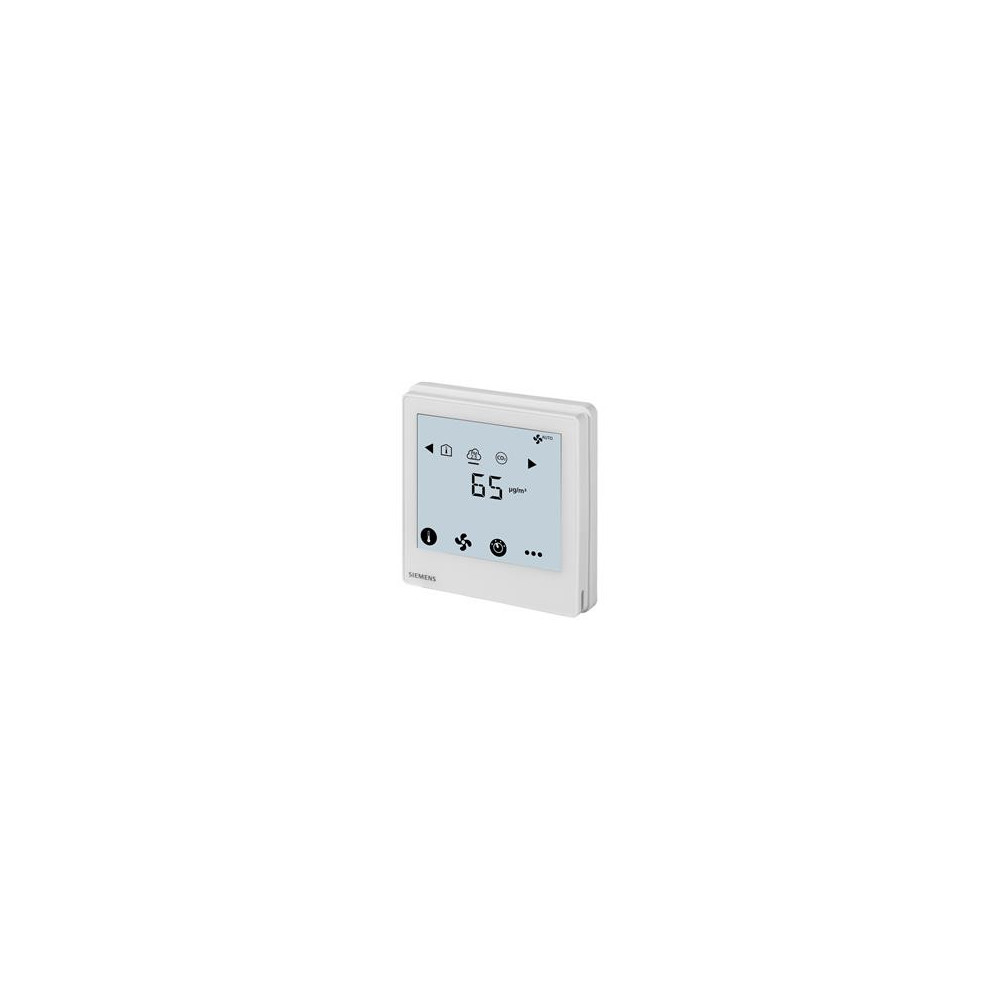

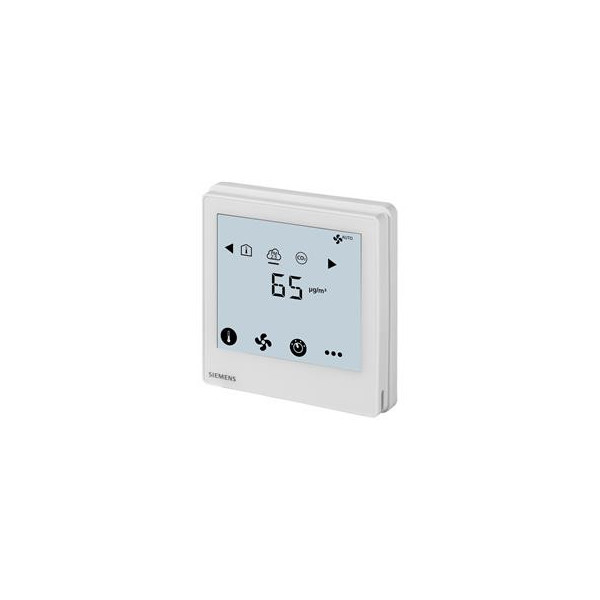

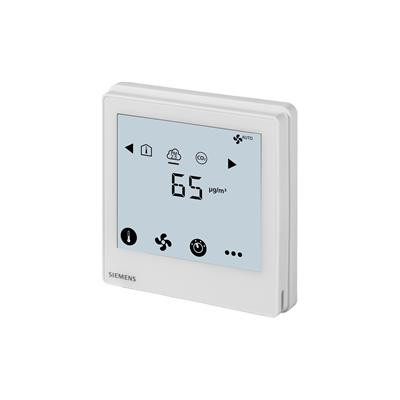

Siemens Regulator RDF870KN
963,72 zł
783,51 zł Netto
Brutto
Najniższa cena w ciągu ostatnich 30 dni
RDF870KN
Flush mount touch KNX PM2.5 & CO2 & Ventilation Controls with on/off or ECM fans selectable and 2x DC 0-10 V input, fit for both round and square conduit boxes
1979
RDF870KN
nd 2x DC 0-10 V input, fit for both round and square conduit boxes
AC 230 V operating voltage, large, backlit display
Display and setpoint adjustment for PM2.5 and CO2 control
Display of room temperature, outside temperature, VOC (volatile organic compound) and RH (relative humidity)
Support 1-/3-/4-speed On/Off fan or DC fan output
Two multifunctional inputs for external passive and DC 0…10 V sensors
Operating modes: Comfort, Economy and Protection
KNX S-Mode
KNX commissioning via ETS or local control parameters
KNX integration into Desigo via group (ETS) or individual addressing
KNX integration into third-party system via group addressing (ETS)
Mounting on recessed square 86 mm box or round 60 mm with 60 mm fixing centers and minimum 40 mm depth
Color of housing: Ivory white (RAL 9001)
Application selectable:
PM2.5 control only
CO2 control only
PM2.5 & CO2 controls (CO2 higher priority in control)
Ventilation control
Informacje dodatkowe
2x sensor inputs are selectable:
0: No function
1: Temperature (AI) (NTC 10k)
2: Temperature (AI) (0…10 V)
3: PM2.5 (AI) μg/m3 (0…10 V)
4: CO2 (AI) ppm (0…10 V)
5: VOC (AI) % (0…10 V)
6: VOC (AI) mg/m³ (0…10 V)
7: RH (AI) % (0…10 V)
8: Alarm input (DI)
9: Dummy AI (0…10 V) (RU only)
