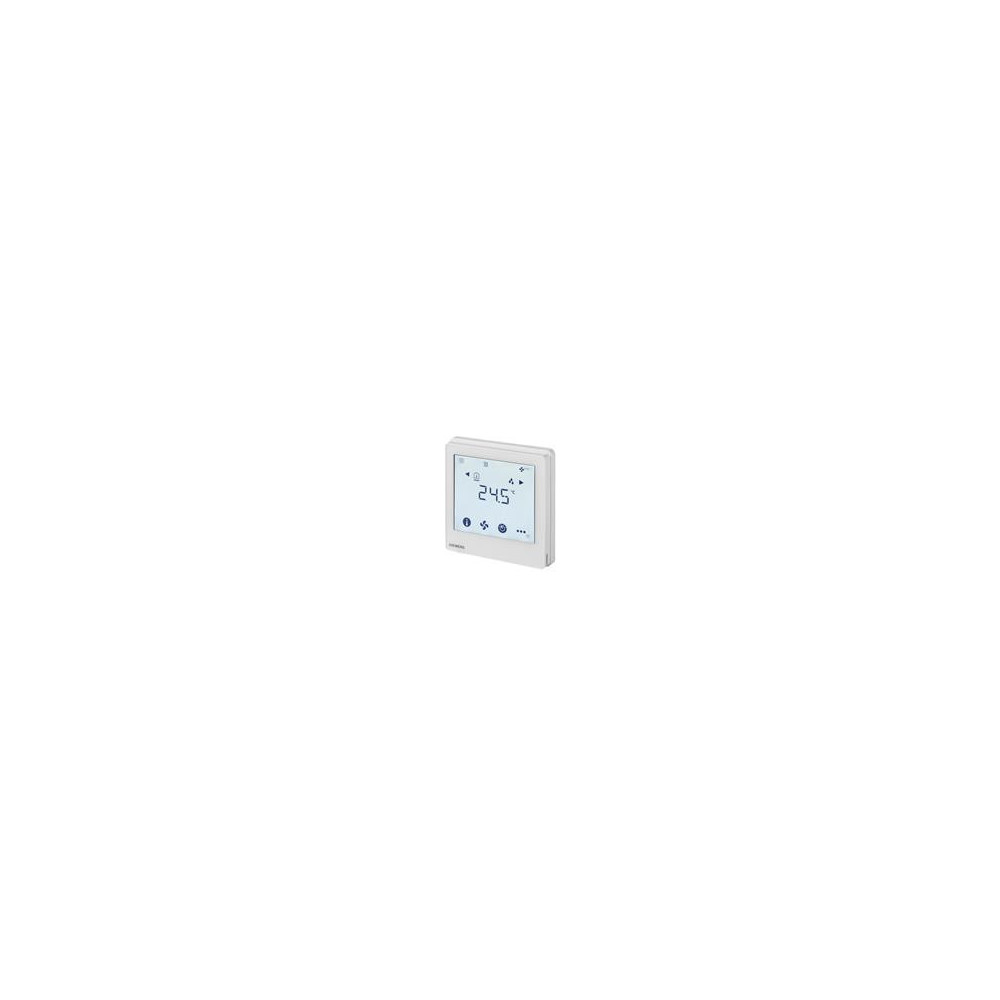

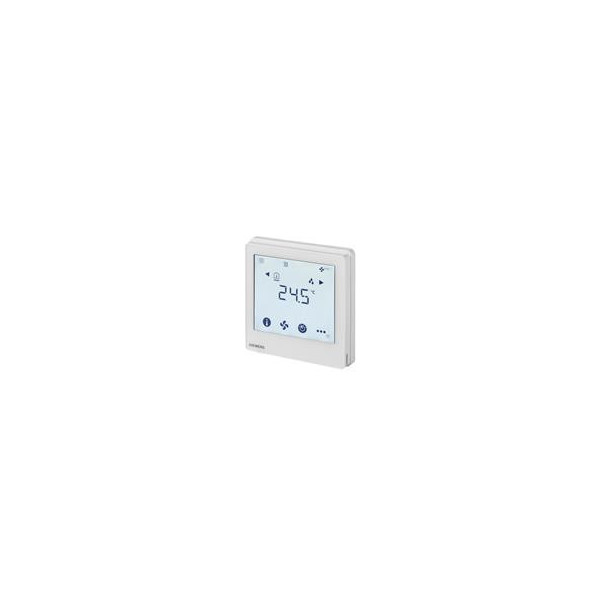

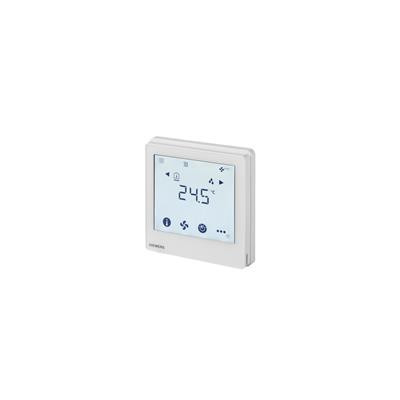

SIEMENS Regulator RDF880KN

SIEMENS Regulator RDF880KN

Siemens
846,24 zł
688,00 zł Netto
Brutto

Najniższa cena w ciągu ostatnich 30 dni

Ilość

RDF880KN

Flush mount touch KNX room thermostat for heating applications and/or VRF Room Unit with KNX Interface to VRF Gateway, for square and round conduit boxes

1086
RDF880KN

Large display, touch screen with backlight

VRF HMI: temperature setpoint, fan speed and operating mode selections

2-position (ON/OFF) temperature control with potential free output for UFH via build-in / external temperature sensor

Display room temperature value (↓C) and relative humidity value (% r.h.) via a build-in temperature and humidity sensor

One setpoint adjustment for both VRF HMI and UFH controls

Fan auto and manual speed setting from 1 up to 7 speed

Operating mode selection for VRF: AUTO, COOL, HEAT, FAN and DRY

Operating mode selection for UFH: Comfort and Protection

Economy operating mode for both VRF and UFH to save energy

2 multifunctional inputs (see details in functional descriptions)

Adjustable control parameters for alternative settings

KNX bus communications via S-mode

Integration to VRF system via S-mode and third party gateways

Commissioning via ETS download

Wizard function for fast commissioning via HMI

Alarm / Error information

AC 230 V operating voltage

Mounting on round box, with min 60 mm diameter or recessed square 86 mm box with 60.3 mm fixing centers and min 40 mm depth

Informacje dodatkowe

User Application selections via dipswitches:

1. Under Floor Heating only (UFH)

2. VRF HMI only (note: interface to VRF indoor unit via a third party VRF/KNX gateway)

3. Both UFH and VRF HMI

When VRF HMI is selected, it covers most daily VRF operations and the following parameters can be set to fit different VRF brands:

· Setpoint adjustment: - maximum / minimum limitations

· Fan speed adjustment: - auto / manual speeds (up to 7 speeds)

· Operating mode selection: - AUTO, HEAT, COOL, FAN and DRY

· Economy mode: - energy saving

· Fan swing adjustment (optional): - auto swing or fix at any position (10)

· Delay off timer (optional): - allow up to 23 hours operations before off

Siemens
1086
RDF880KN
